COXO C-Sailor S1
Dental implantology system

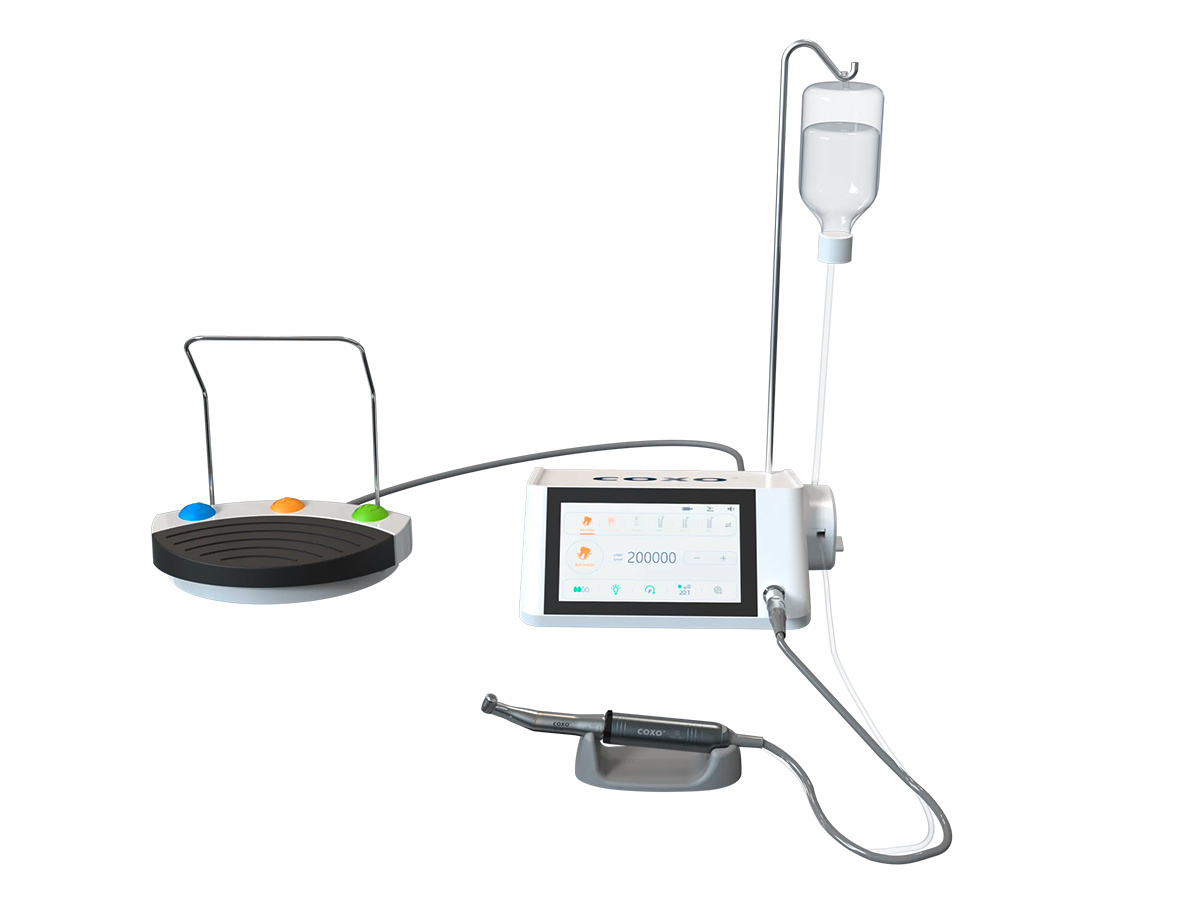

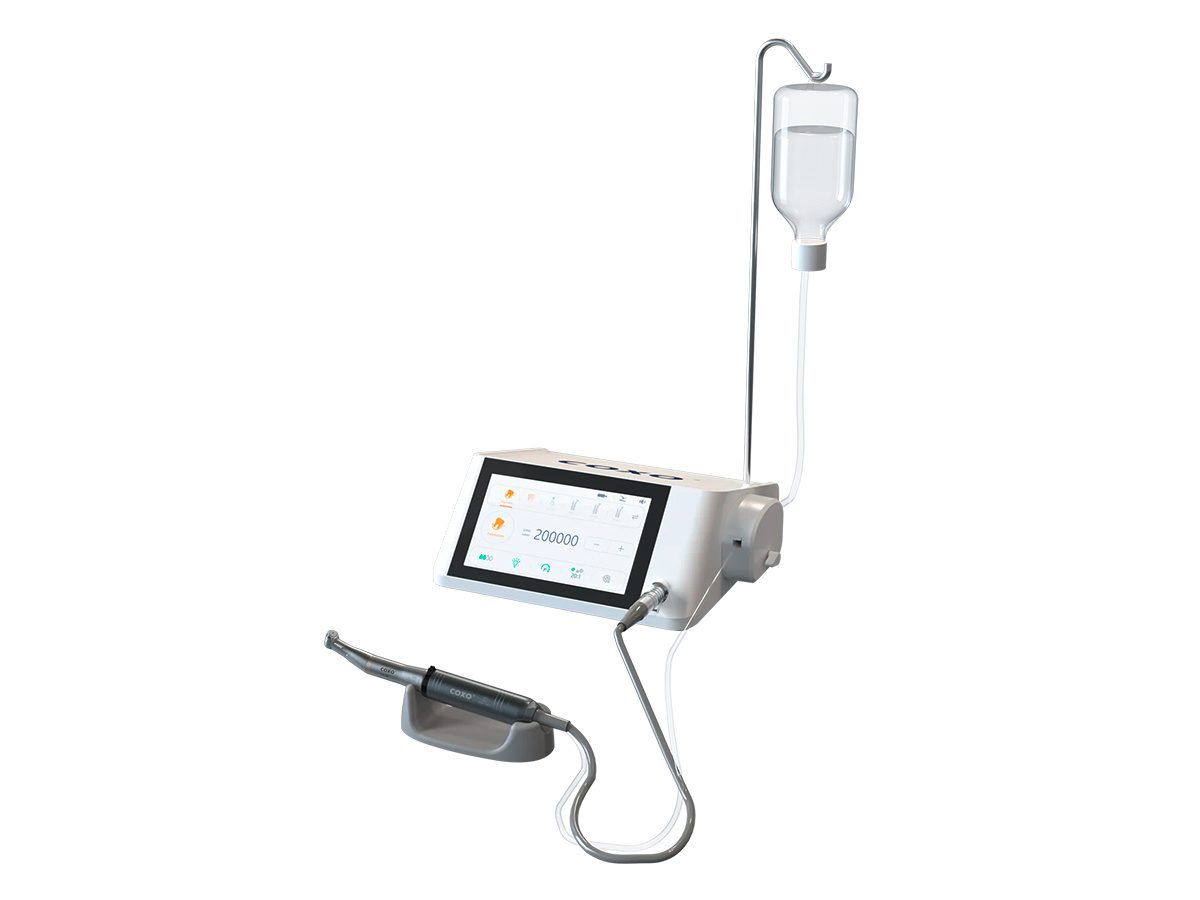

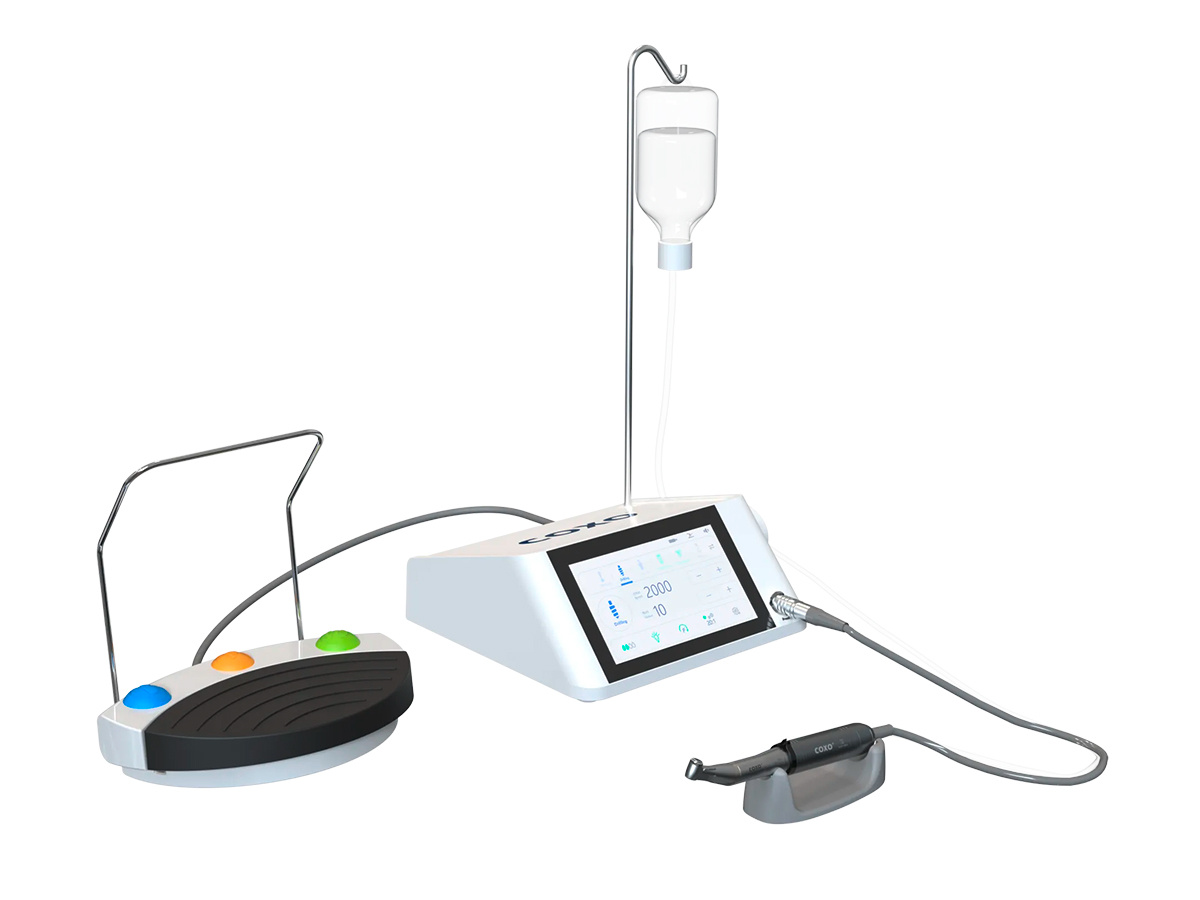

The COXO C-SAILOR S1 is a high-performance implantology and surgical system designed for precise oral procedures. With a torque of up to 70 Ncm, a brushless motor and an intuitive 7-inch touchscreen, it offers a reliable and user-friendly solution for modern dental practice. Item No.
40937010 (40937010)
Product description
The COXO C-SAILOR S1 has been specially developed to meet the requirements of implantology and oral surgery. The latest-generation brushless surgical motor ensures smooth, low-vibration power delivery and enables precise control throughout the entire treatment process. The clear 7-inch colour touchscreen offers quick access to all relevant parameters and supports an efficient workflow. The integrated automatic torque calibration ensures consistently high accuracy, whilst the quiet, waterproof peristaltic pump guarantees reliable cooling of the surgical site. Thanks to LED lighting, a multifunctional foot switch and robust metal connectors, the C-SAILOR S1 meets the requirements of a modern implantology motor system.Advantages
- Powerful 4th-generation brushless surgical motor.
- Maximum torque of 70 Ncm (with 20:1 contra-angle handpiece).
- Speed range from 300 to 40,000 rpm.
- Large 7-inch colour LCD touchscreen for intuitive operation.
- Automatic torque calibration for precise treatment results.
- Integrated cleaning programme for contra-angles.
- Quiet, waterproof peristaltic pump with four-stage adjustable coolant flow.
- Bright LED lighting for an optimal view of the treatment area.
- Multifunctional foot control for hands-free operation.
- Robust metal connectors for long service life.
- Suitable for implantology and oral surgery procedures.
Technical information
Applications: Implantology and oral surgeryMotor type: Brushless surgical motor
Max. torque: 70 Ncm (20:1)
Speed range: 300–40,000 rpm
Display: 7-inch colour LCD touchscreen
Illumination: LED up to ≥7,000 lux
Cooling: Peristaltic pump, adjustable in 4 stages
Power supply: AC 110–230 V, 50/60 Hz
Power consumption: 120 VA
Dimensions: 248 × 232 × 100 mm (excluding pump)
Weight: approx. 2.9 kg
Scope of delivery
- COXO C-SAILOR S1 Base Unit
- brushless surgical motor with motor cable
- COXO 20:1 implant contra-angle handpiece
- multifunctional foot switch
- irrigation hose holder
- mains cable
- user manual
Artikelmerkmale
Manufacturer
COXO
Product type
Implantologie-System
