COXO C-Sailor Air
Dental implantology system

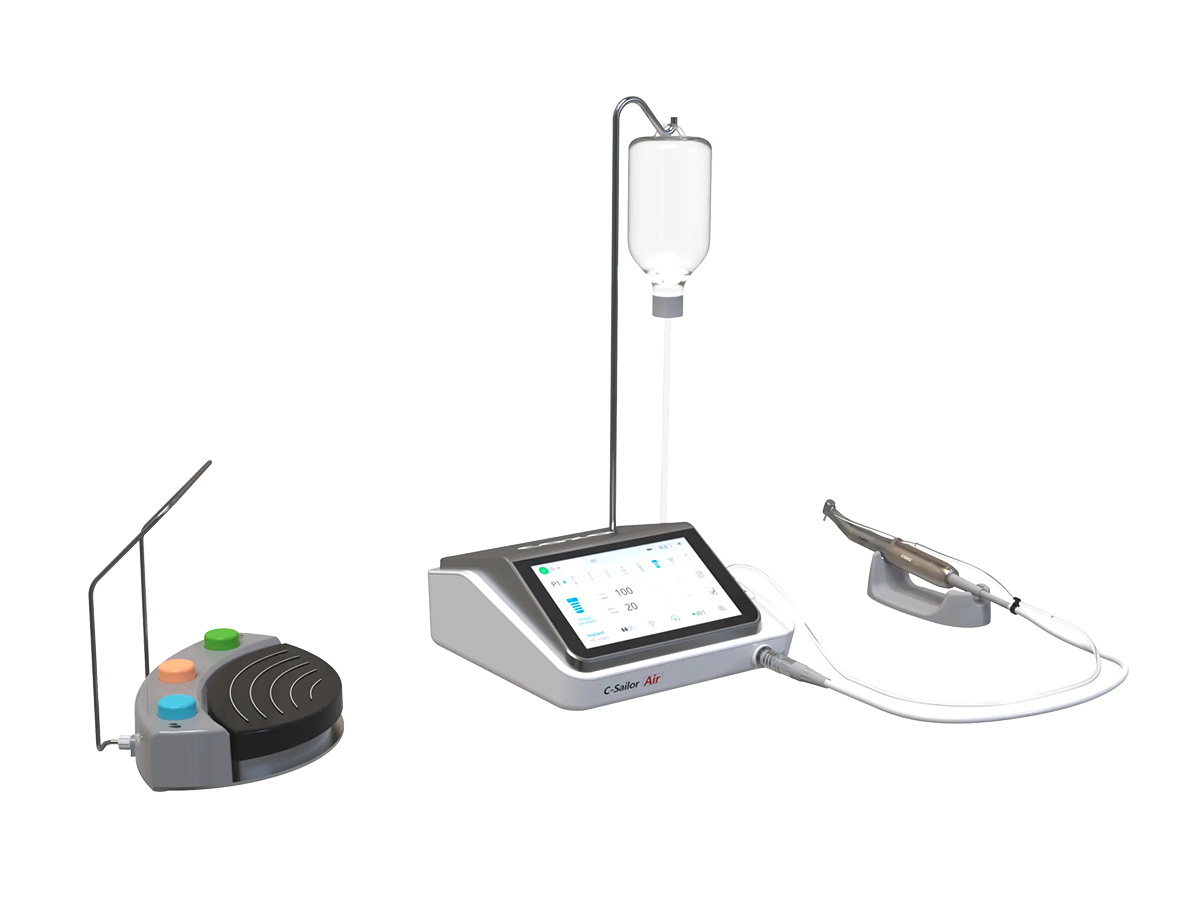

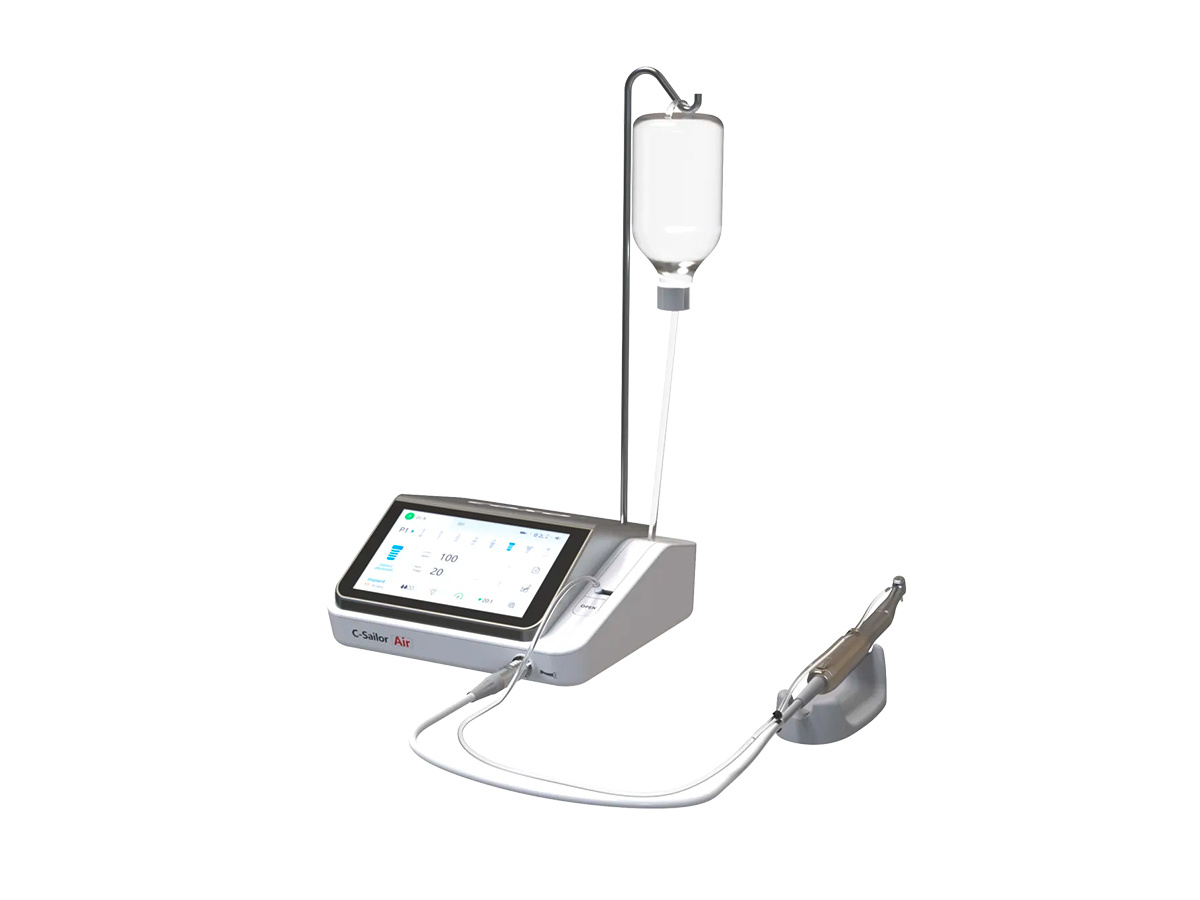

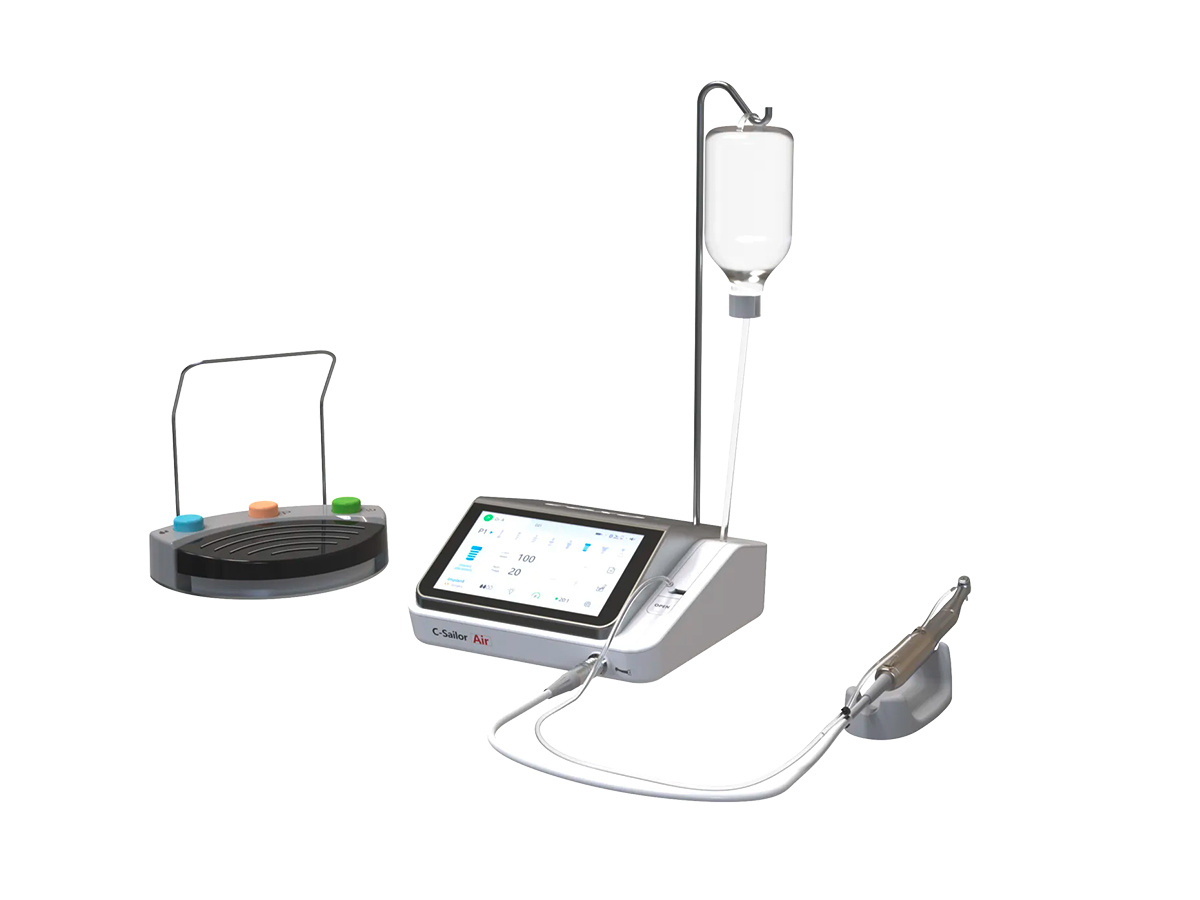

The COXO C-SAILOR AIR is an ultra-compact implantology and surgical system featuring a powerful brushless motor and torque of up to 80 Ncm. Thanks to its space-saving design, 7-inch touchscreen and wireless foot control, it is ideal for modern practices with the highest standards of flexibility and precision.
Item No.
40937011 (40937011)
Product description
The COXO C-SAILOR AIR combines state-of-the-art implantology technology with a particularly compact and lightweight design. Equipped with the powerful 5th-generation Raptor motor, the system delivers a constant torque output of up to 80 Ncm and ensures precise control during implantology and oral surgery procedures. The large 7-inch touchscreen with a graphical user interface makes operation easy and guides the user intuitively through the individual treatment steps. Pre-defined programmes, automatic torque calibration and the option to create individual user profiles ensure an efficient workflow. In addition, treatment data can be exported and documented via USB.Advantages
- Ultra-compact and lightweight design – ideal for practices with limited space.
- Powerful 5th-generation Raptor brushless motor.
- Maximum torque of 80 Ncm (with 20:1 contra-angle handpiece).
- Speed range from 300 to 40,000 rpm.
- Large 7-inch colour LCD touchscreen with intuitive operation.
- Graphical implantology programmes with pre-set treatment parameters.
- Automatic torque calibration for precise results.
- Support for multiple user profiles with individual programme storage.
- Export of treatment data and patient reports via USB.
- Wireless multifunction foot control for maximum freedom of movement.
- Quiet, waterproof peristaltic pump with four-stage adjustable coolant flow.
- LED lighting for optimum visibility in the treatment area.
- Compatible with a wide range of gear ratios (including 20:1, 16:1, 27:1, 32:1, 1:1, 1:5).
Technical information
Applications: Implantology and oral surgeryMotor type: Brushless surgical motor
Max. torque: 70 Ncm (20:1)
Speed range: 300–40,000 rpm
Display: 7-inch colour LCD touchscreen
Illumination: LED up to ≥7,000 lux
Cooling: Peristaltic pump, adjustable in 4 stages
Power supply: AC 110–230 V, 50/60 Hz
Power consumption: 120 VA
Dimensions: 248 × 232 × 100 mm (excluding pump)
Weight: approx. 2.9 kg
Scope of delivery
- COXO C-SAILOR S1 Base Unit
- brushless surgical motor with motor cable
- COXO 20:1 implant contra-angle handpiece
- multifunctional foot switch
- irrigation hose holder
- mains cable
- user manual
