Product description

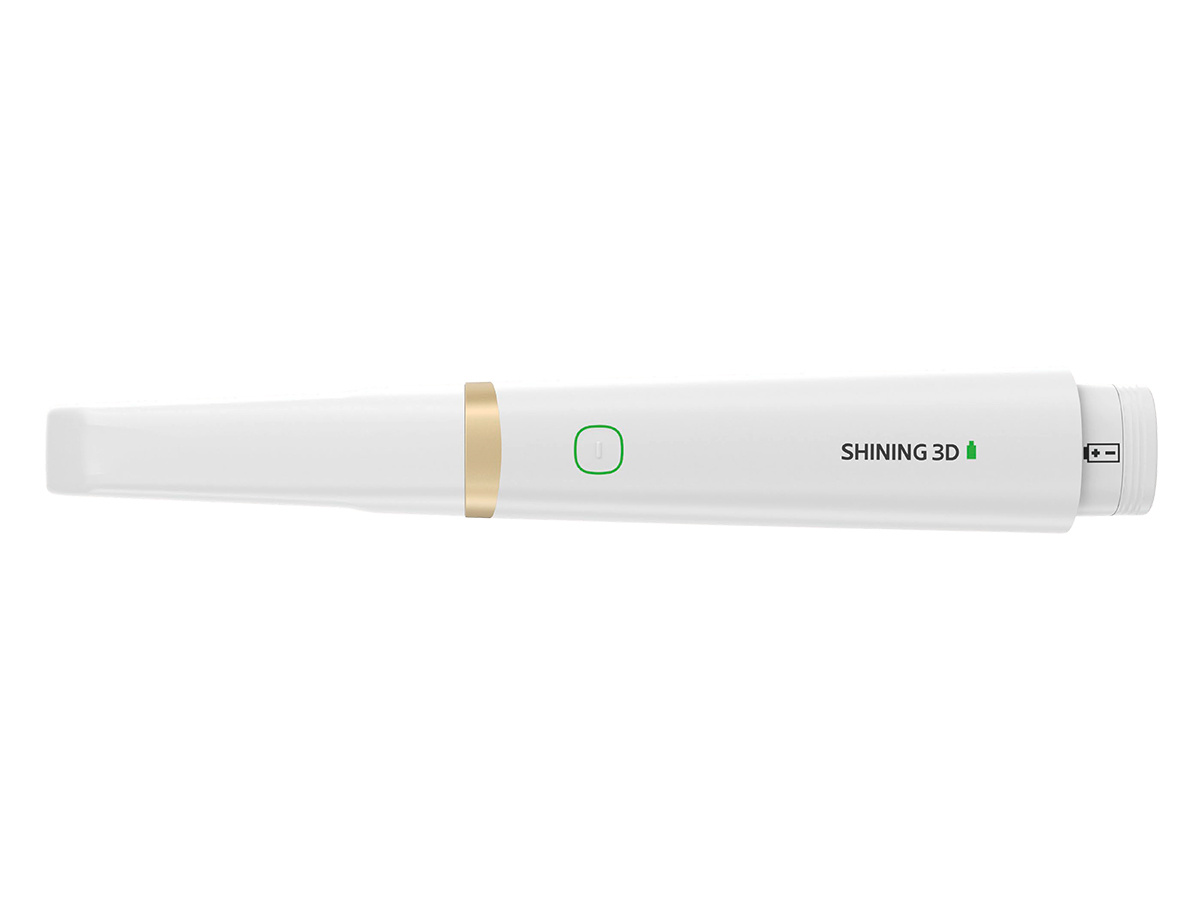

The Aoralscan Elite Wireless combines maximum freedom of movement with state-of-the-art intraoral photogrammetry (IPG) in a powerful scanning system. Its wireless design enables comfortable and efficient workflows in everyday clinical practice, while the innovative technology ensures precise and reliable data acquisition.
It can be used for clinical indications in the fields of general restorations, implantology, and orthodontics.
The Aoralscan Elite Wireless helps dentists and dental laboratories make treatments more efficient, minimize sources of error, and ensure a high level of predictability in treatment outcomes.
As a result, modern practices and laboratories benefit from faster workflows, more accurate data, and greater treatment reliability.
Advantages
• Wireless operation and comfortable data acquisition
Lightning-fast and stable data transmission with Wi-Fi 6 enables seamless and highly efficient scanning.
• Lightweight and ergonomic
At only 194 g including the battery, this is the lightest wireless scanner, designed for convenient handling and exceptional comfort.
• Refined Scan
Enhances the restoration area to obtain clear margin data and more detailed surface information.
• Clinical Toolkit
The Clinical Toolkit supports dentists in evaluating and planning scanned data directly within their own practice.
• Ideal for complex implant cases and All-on-X restorations
• Long battery life and wireless charging
2 hours of continuous scanning and 2.5 hours for a full battery charge.
• Operating system of your choice
The Aoralscan Elite Wireless is compatible with both Microsoft Windows and Apple macOS.
Scanning Software
• AI Scanning
AI technology helps remove unnecessary data in real time during scanning, making the process smoother and more efficient.
• Undercut Detection
Undercut values can be identified during scanning, allowing easy assessment of any additional tooth preparation required.
• Motion Sensing
Motion Sensing enables users to complete the entire scanning workflow without touching anything other than the scanner itself.
• Bite Analysis
Bite analysis and cross-sectional views ensure an accurate occlusal relationship for subsequent applications.
• Refined Scan
This feature provides clear restoration margins and more detailed profile information.
• Automatic Margin Line Extraction
Margin lines can be extracted automatically, increasing workflow efficiency and improving communication between dentists and dental technicians.
Toolkits
• ConsulOS
The orthodontic treatment process can be simulated, allowing patients to preview the expected treatment outcome in advance.
• MetronTrack
Measurement and comparison functions help improve the efficiency and effectiveness of dentist-patient communication by tracking patient data.
• CreSplint
An intelligent tool that allows users to automatically design retainers or occlusal splints with minimal effort.
• CreTemp
Temporary crowns can be designed and printed directly in the clinic, reducing patient waiting times.
• CreIBT
Designs an indirect bonding tray that can be directly 3D printed, enabling orthodontists to place brackets faster and more accurately.
• AccuDesign
Orthodontic or restorative models can be easily designed with AI for 3D printing.
Technical information
Scanning Depth: 22 mm from the tip exit surfaceAccuracy: Single unit 10 μm, three-unit bridge 20 μm
Precision: Up to 5 μm
Connection: USB-C
Output Formats: STL, OBJ, PLY
Power Consumption: 5 V DC, 3 A
Dimensions (L × W × H): 247 × 38 × 37 mm
Weight: 194 g (including battery)
System Requirements for PC & MAC (Recommended Configuration)
macOS
Operating System: macOS Ventura 13 or later
Processor: Minimum 8-core CPU & 10-core GPU
Memory (RAM): 16 GB or more
Storage: SSD recommended (1 TB)
Interface: At least one USB-C port
Windows
Operating System: Windows 10 Professional (64-bit) or later
Processor: Intel® Core™ i7-8700 or higher
Memory (RAM): 32 GB recommended
Storage: 256 GB SSD or larger
Graphics Card: NVIDIA® RTX 2060, 6 GB DDR3 or higher
Display Resolution: 1,920 × 1,080, 60 Hz or higher
I/O Ports: USB-C
Scope of delivery

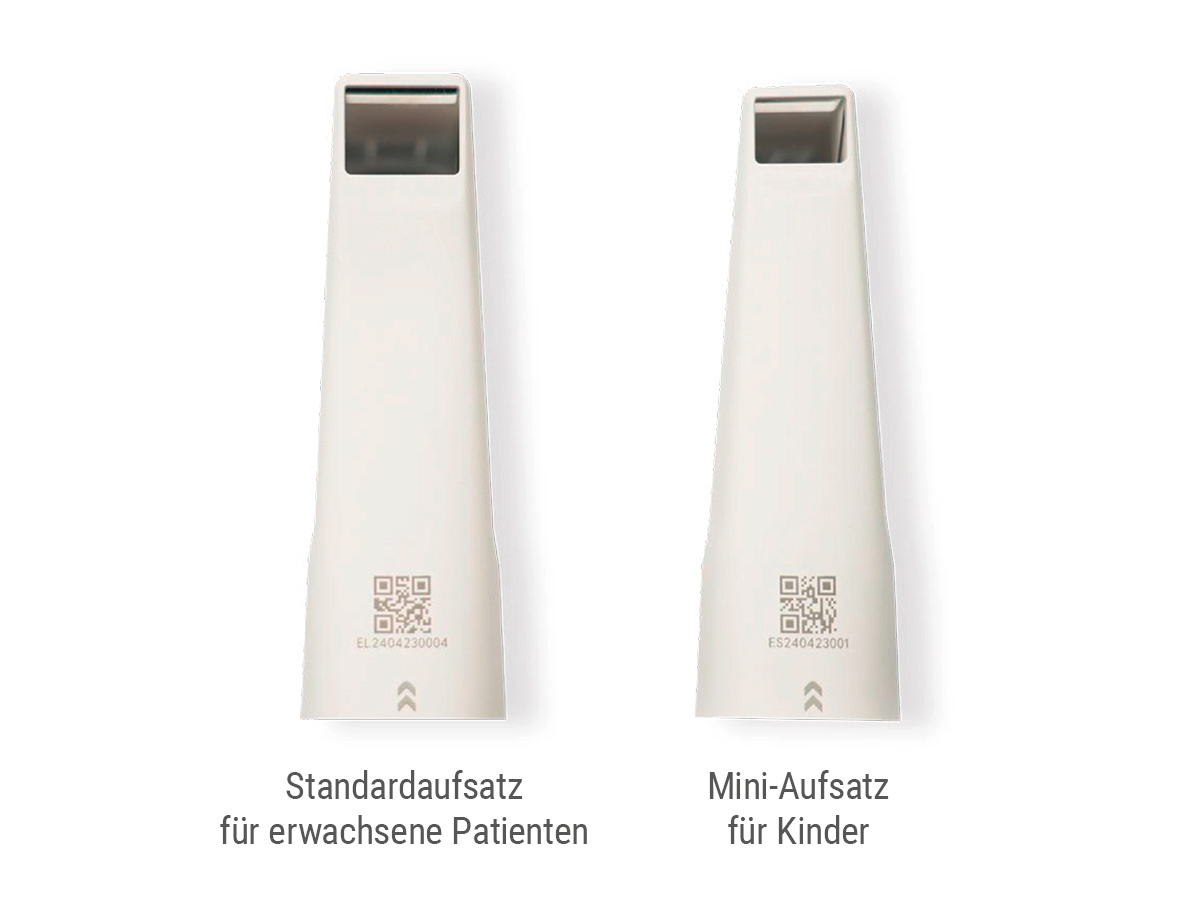

Included in the Package2 Scan Tips (Standard Tip, Mini Tip)
3 Batteries

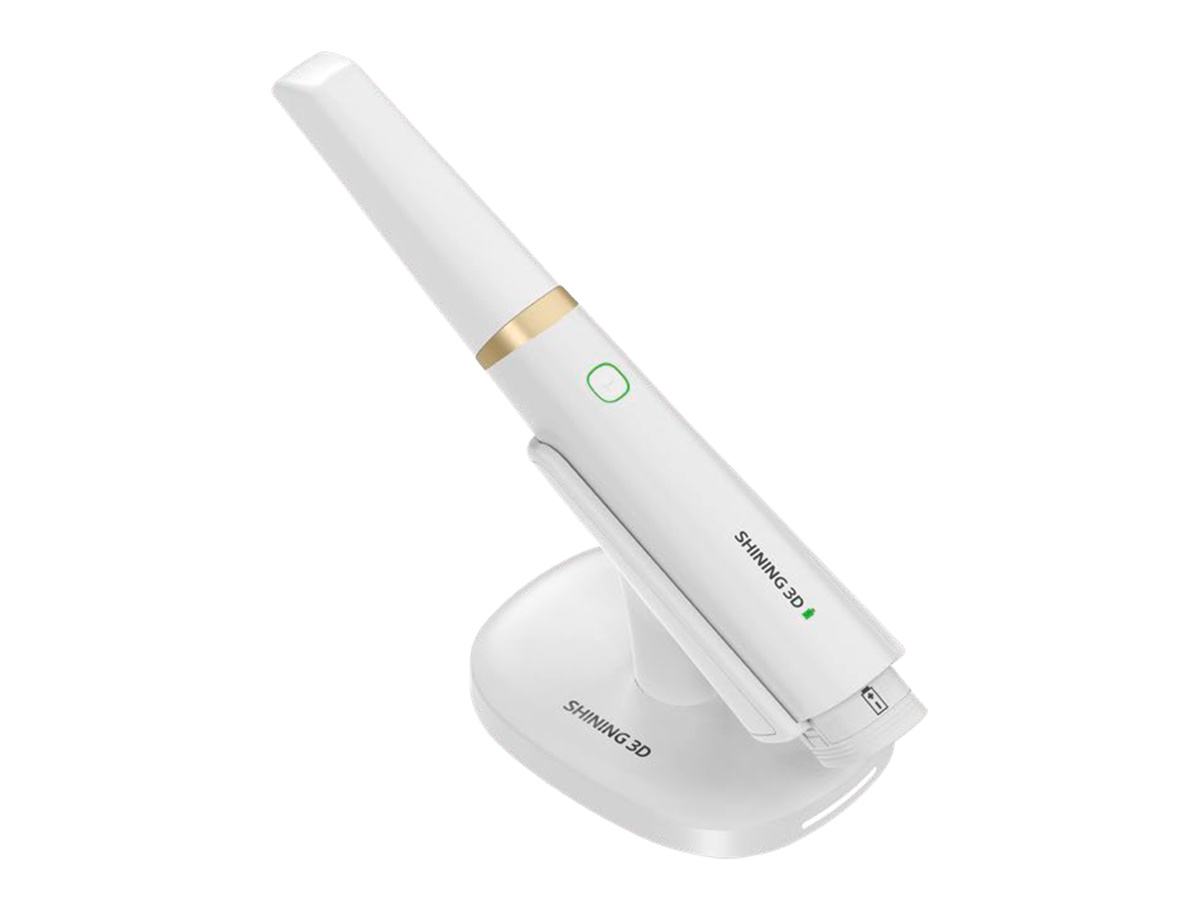

Charging Station
Scanning Software
Toolkits (Additional Software)
Artikelmerkmale
Manufacturer
Shining 3D
Product type
Intraoralscanner
