ProLight Cure Box
Post-curing unit for PolyJet materials
For professional post-curing of 3D-printed PolyJet materials.Please note the different delivery charges.
Item No.
40361035 (40361035)
Hersteller Art.-Nr.
OBJ-09960
Product description

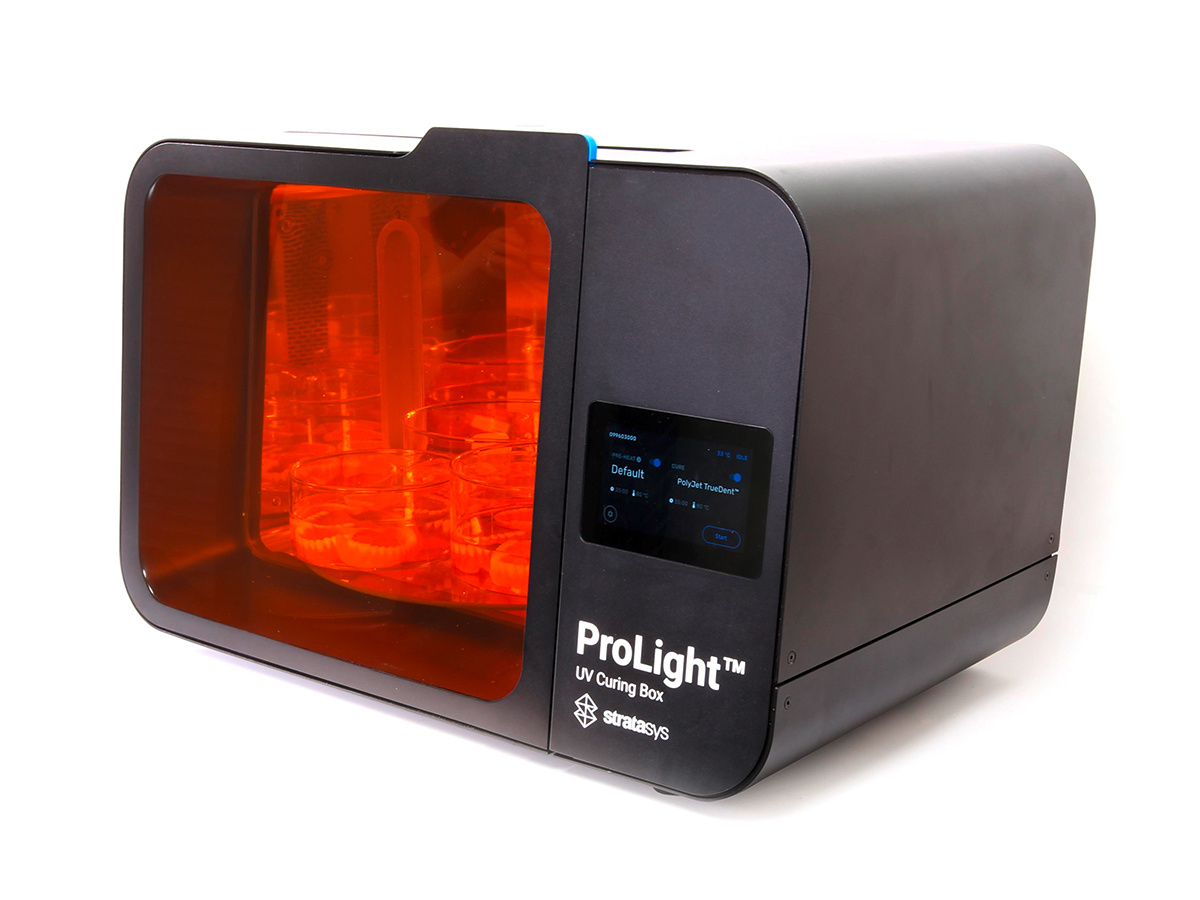

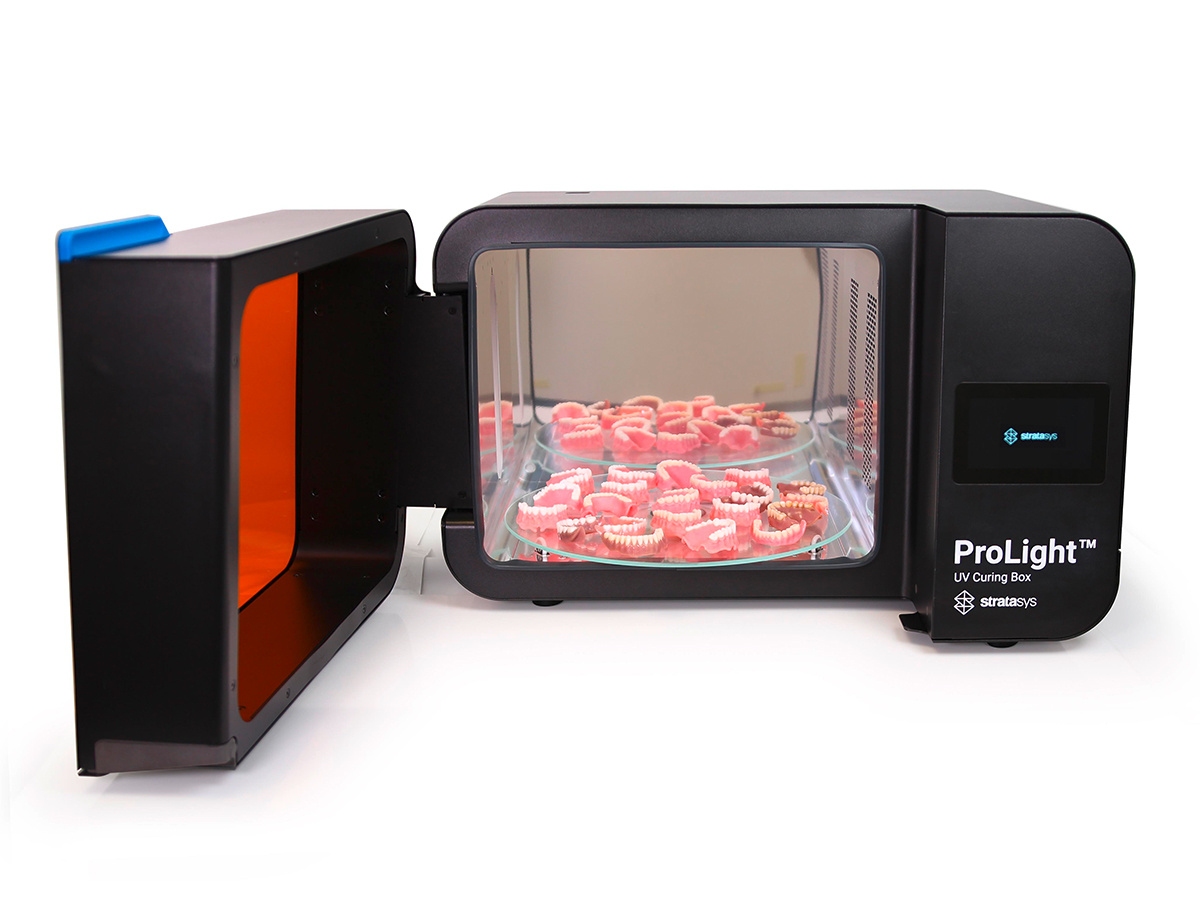

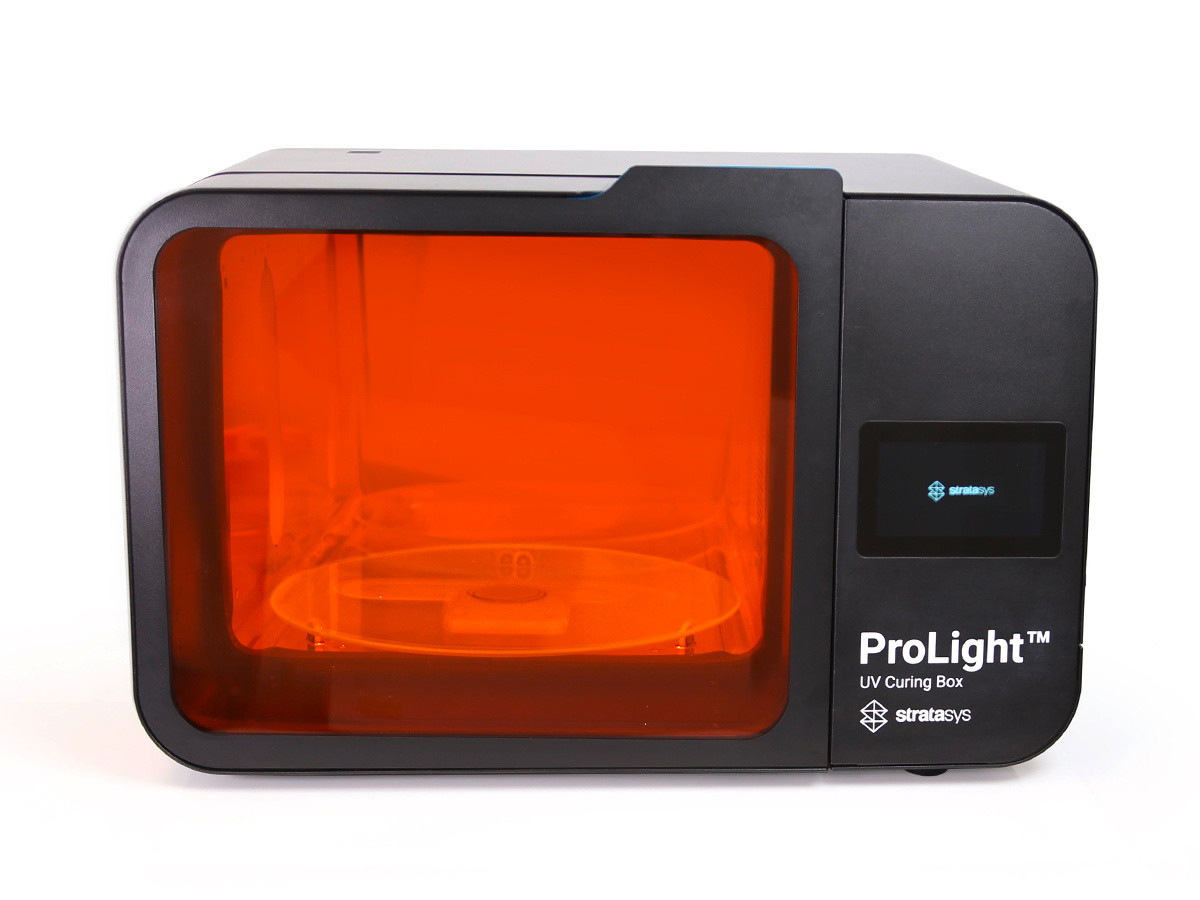

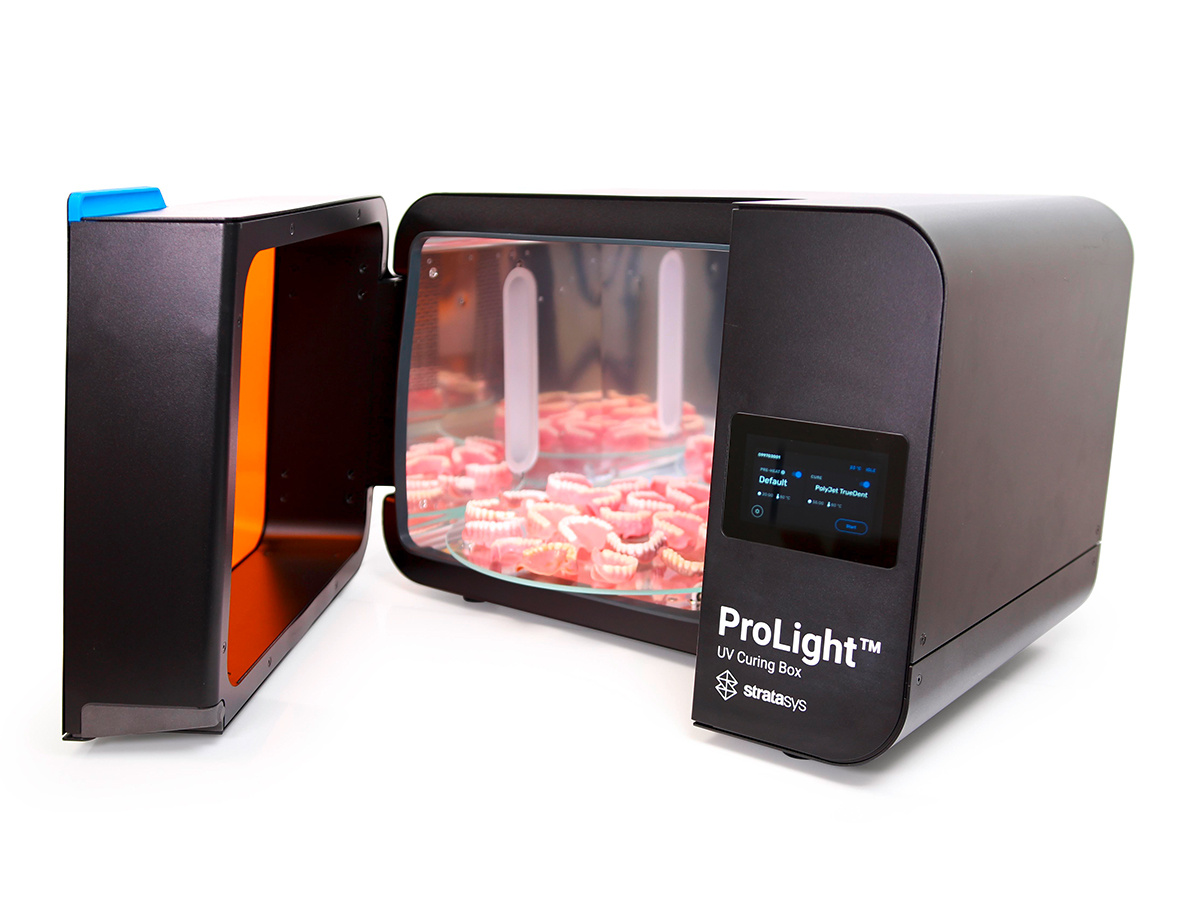

The ProLight Cure Box from Stratasys enables controlled and uniform post-processing of applications 3D-printed using the PolyJet technology. Post-curing optimises PolyJet materials such as ToughONE, TrueDent and transparent materials. The unit uses a 450 nm LED light source and can heat up to 80 °C to ensure optimal curing.Compatible materials
- ToughONE
- TrueDent
- TrueDent-D
- Vero
- Agilus30 family
Technical information
Light source: 45 multi-directional 450 nm LEDsLED output: 36 W
Max. post-cure temperature: 80 °C (176 °F)
Curing volume: Cylinder 39.5 cm (15.6 in) in diameter and 32 cm (12.6 in) tall
Turntable diameter: 39.5 cm (15.6 in)
Product dimensions: 69 ×54 ×44.5 cm (27.2 × 21.3 ×17.5 in)
Product weight: 24 kg (53 lb)
Min. dimensions for convenient access: 90 ×85 ×55 cm (35.5 ×33.5 ×21.7 in)
Unit control: interactive touchscreen
Alerts: Touchscreen alerts
Connectivity: Wi-Fi 2.4 GHz; Ethernet 100 Mbit; USB 2.0
Wi-Fi connectivity: Protocol IEEE 802.11 b/g/n; Frequency 2.4 GHz; Supported security WPA/WPA2
Power requirements: 220–240 VAC, 50–60 Hz, 8 A max
Ambient temperature: 18–28 °C (64–82 °F)
Relative humidity: 30–70 % (non-condensing)
Artikelmerkmale
Manufacturer
Stratasys
Product type
Postprocessing
