Product description

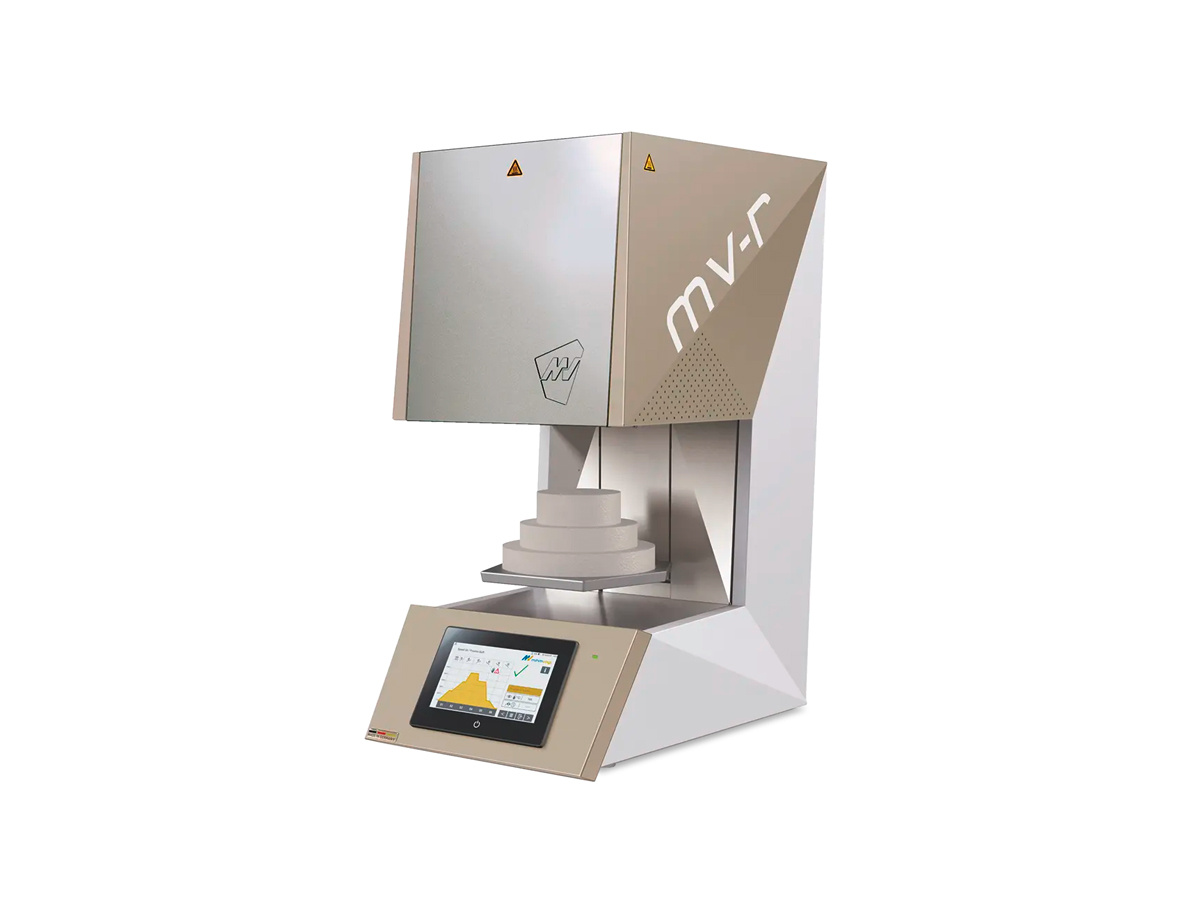

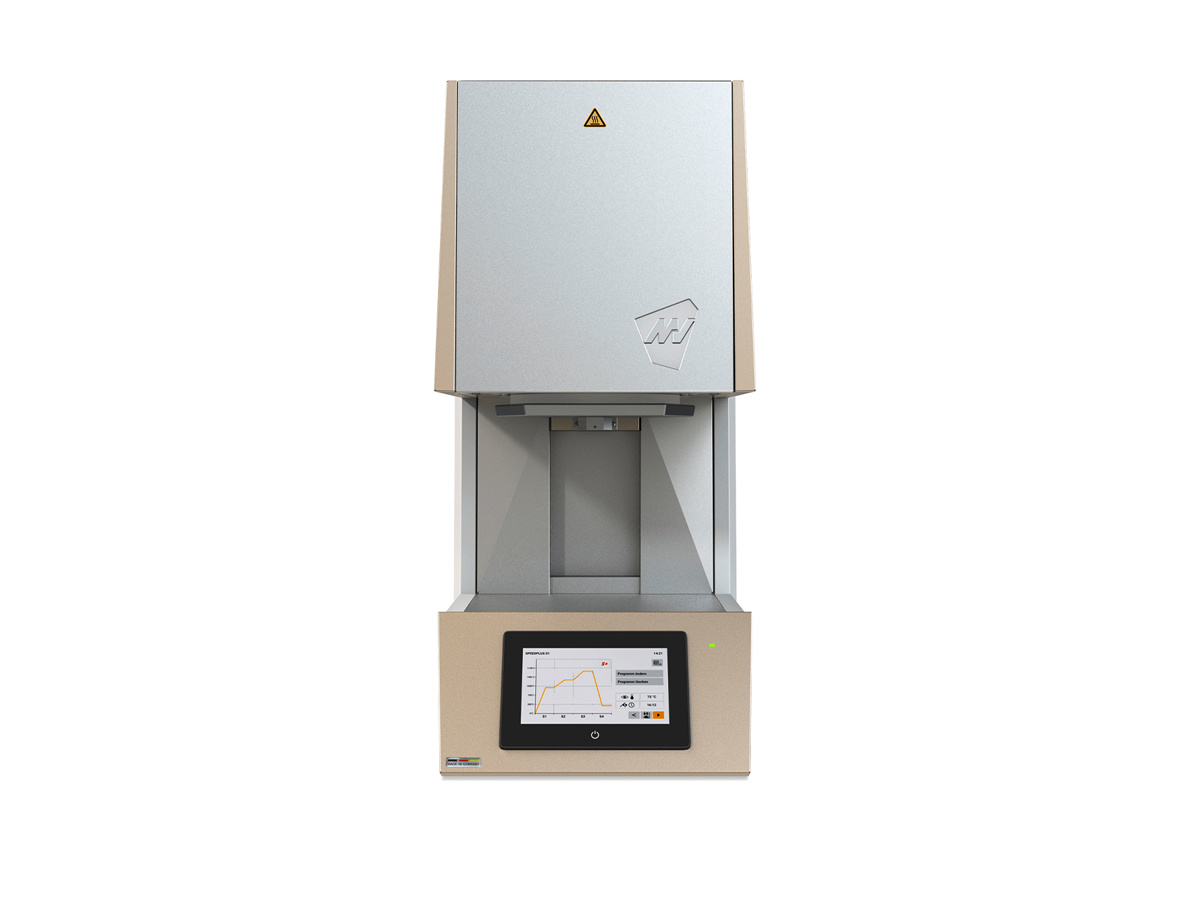

The perfect combination of proven technology and forward-thinking innovation: The mv-r is a sintering furnace with a lift door, capable of accommodating up to two stacked sintering trays with a diameter of Ø 100 mm and a height of 30 mm. Thanks to significant advancements in heating technology, the mv-r achieves heating rates of up to 200 °C/min, with a maximum sintering temperature of 1,650 °C. An integrated timer function allows sintering processes to run automatically.Each sintering program can be configured across 200 program slots, with up to 10 adjustable stages per program. The clearly structured touch display guides users through the menu levels step by step, enabling quick and easy parameter input.
For simplified servicing, the integrated USB interface allows for software updates, error log retrieval, and quality assurance protocol analysis. These and other forward-looking innovations—combined with MIHM-VOGT’s renowned quality—make the mv-r a powerful partner for any requirement in dental practices and laboratories.
Three preset service programs assist with the maintenance and cleaning of the heating system and sintering accessories.
Overview
- 7" touch display
- 200 programs capacity
- 10 heating stages
- 4 MoSi2 heating elements
- max. heating rate 200 °C/min
- linear cooling
- SPEED COOLING
- heating stand-by
- 3 service programs
- fault diagnosis QR-code
- data transfer via USB
- regulated device cooling
NOTE: Due to the weight of the item (65 kg), delivery will be made by a shipping company. The costs can be found in the requested quote.
Technical information
Heating systemProcess capability: SPEED Motion, SPEED+, SPEED, CLASSIC
Heating elements: 4× MoSi2
Max. temperature: 1,650 °C
Thermocouple: PtRh-Pt, type 5
Temperature accuracy: ± 3 °C at 1,500 °C
Heating-chamber capacity: 2× sintering tray (Ø = 100 mm, H = 30 mm), heating-chamber interior height 70 mm
Program control
Program capacity: 200
Number of programmable stages: 10
Max. heating rate: 200 °C/min
Min. heating rate: 0.1 °C/min
Special funktions: pre-drying, heating stand-by, timer (Autostart)
Service programs: temperature control in conjunction with test-kit,, purge heating chamber, regenerate heating elements
Shortest heation period: 8 min up to 1,500 °C at 230 V (SPEED+ program)
Process times
max. programmable heating rate:
- CLASSIC: 30 °C/min
- SPEED: 120 °C/min
- SPEED MOTION: 200 °C/min
- CLASSIC: 49 min
- SPEED: 13 min
- SPEED MOTION: 8 min
- CLASSIC: 45 min (down to 300 °C)
- SPEED: 8 min (down to 750 °C)
- SPEED MOTION: –
- CLASSIC: 146 min (2.4 h)*
- SPEED: 51 min (0.8 h)
- SPEED MOTION: 20 min (0.3 h)**
* Prozcess parameters: Sinter temperature = 1,500 °C, holding time = 30 min, 1 sintering tray
** Prozcess parameters: Sinter temperature = 1,500 °C, holding time = 12 min, fleece
Technical data
Power max.: 3,500 W (3.5 kW)
Voltage range; frequency: 200–240 V; 50/60 Hz
Weight: 65 kg
DPower consumption per cicle: 1.45 kWh
Scope of delivery
- 1× sintering tray SiC HD, Ø = 100, H = 30 mm (Only suitable up to 1,550 °C!)
- thermal fabric support, 100/12; for sintering tray (set-5)
- sintering granulate YTZ, 200 g
- sintering fleece, 40/12; SPEED Motion (set-5)
- 1× Cover, 100/10; for sintering tray
Artikelmerkmale
Manufacturer
Mihm Vogt
Product type
Sintering furnace
