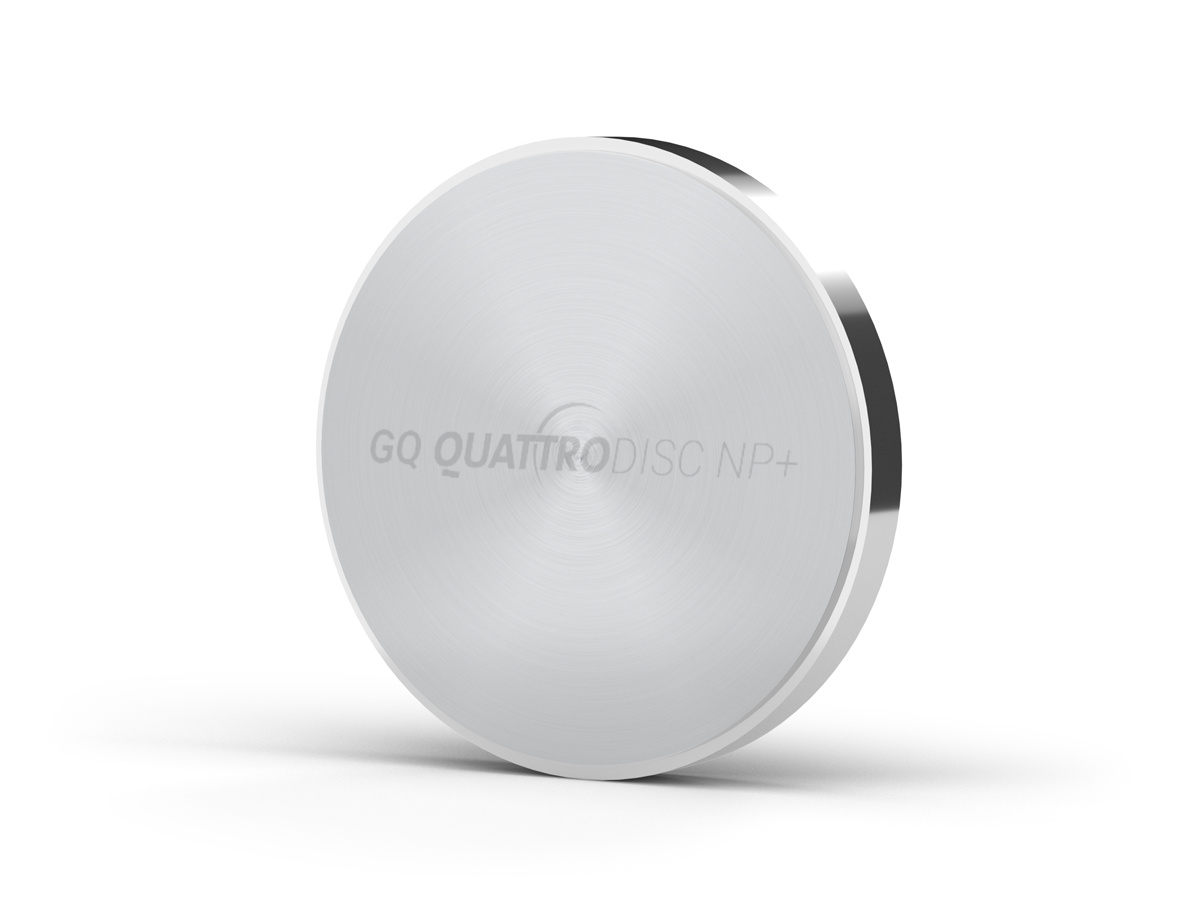

GQ Quattro Disc NP+
H = 13,5 mm, D = 98.5 mm
Item No.
91508113 (91508113)
Head description
Premium CoCr milling blank manufactured using the permanent mould casting process.
Product description
GQ Quattro Disc NP+ is a premium CoCr milling blank manufactured using the die casting process.The homogeneous and particularly dense material structure ensures excellent milling properties,
high process reliability and durable dental restorations – ideal for laboratories that expect maximum precision and reproducible quality.
Advantages
- Homogeneous, fine-grained structure – ideal for precise milling
- Minimal internal stresses – reduces distortion in delicate structures
- Very good machinability – smooth milling behaviour & low tool wear
- Biocompatible CoCr alloy – safe for long-term use in the oral cavity
- High strength and corrosion resistance
Indications
Suitable for all common non-precious metal indications:
- Crowns and bridge frameworks
- Cone technique, telescopes and attachments
- Superstructures on implants
- Combination work
Technical information
Certification: biocompatibleDensity: 8.2 g/cm3
Vickers hardness: 330 HV10
Linear CTE (25–500 °C): 14.2 ×(10-6 × K-1)
Linear CTE (20–600 °C): 14.4 (10-6 ×K-1)
Maximum recommended firing temperature: 980 °C
0,2%-yield strength (Rp0,2): 610 MPa
Modulus of elasticity: 200 GPa
Elongation at break: 6.5 %
Tensile strength: 610 MPa
Composition (mass content)
Co: 63.0 %
Cr: 29.0 %
Mo: 5.8 %
Si: 1.2 %
Fe, Mn, Nb: <1 %
Artikelmerkmale
Manufacturer
GQ Quattro
Material
NEM
Product type
NP+
Diameter
98,5 mm
Height
13,5 mm
