Product description

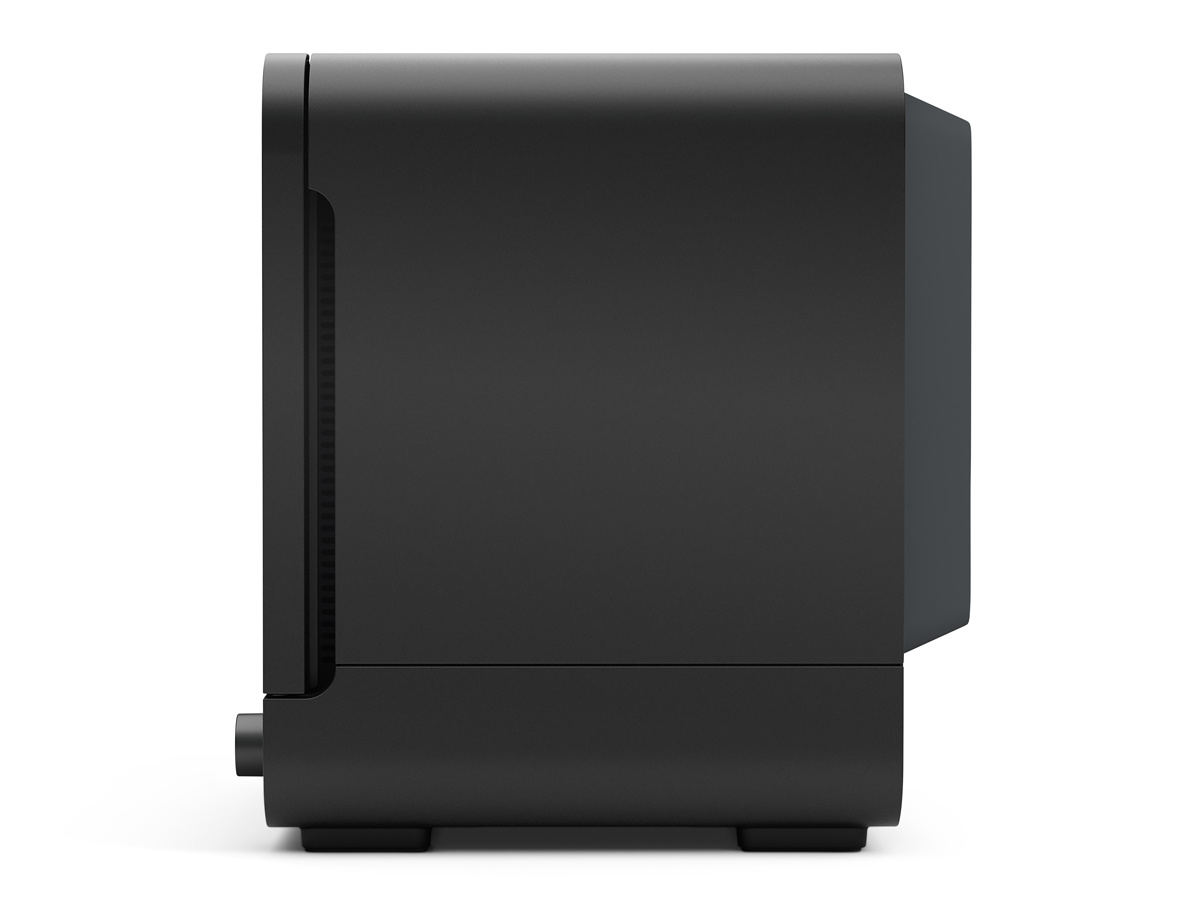

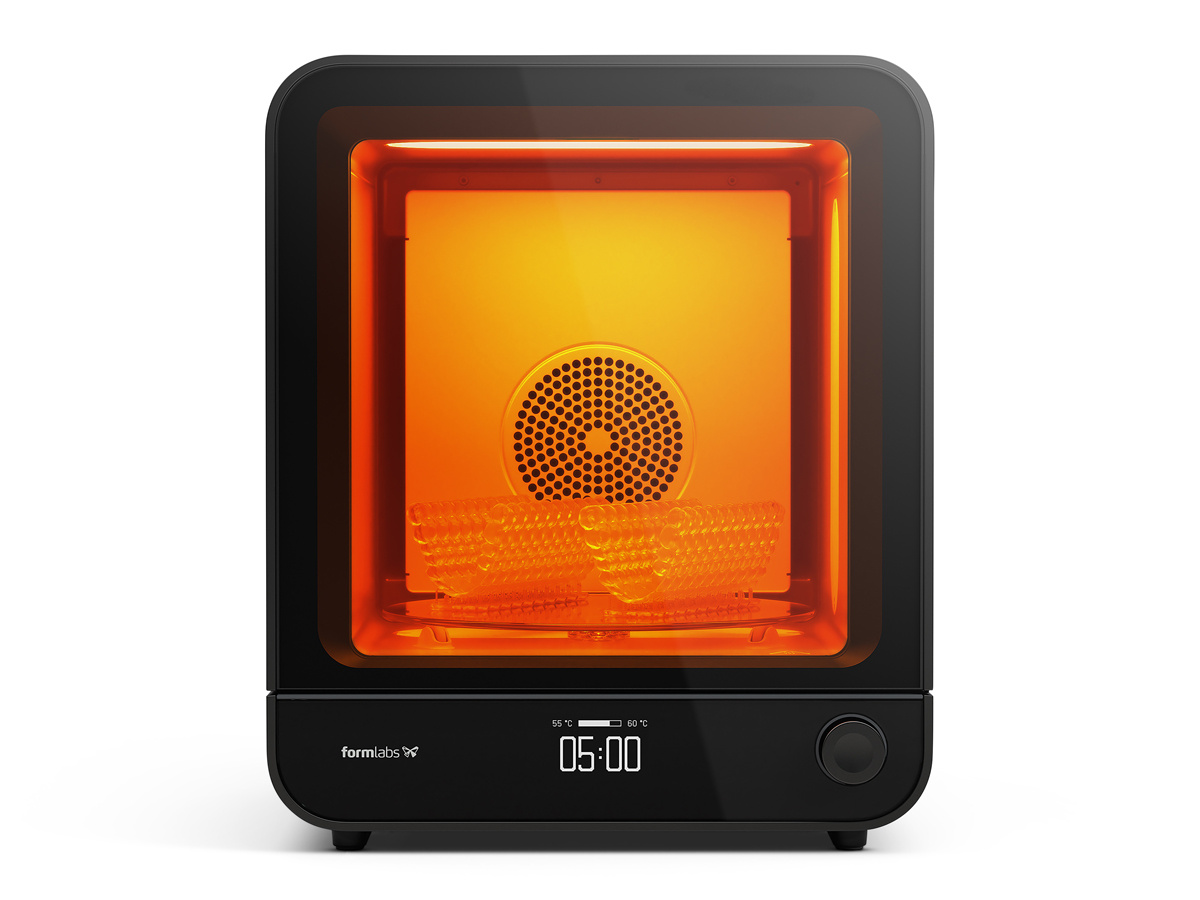

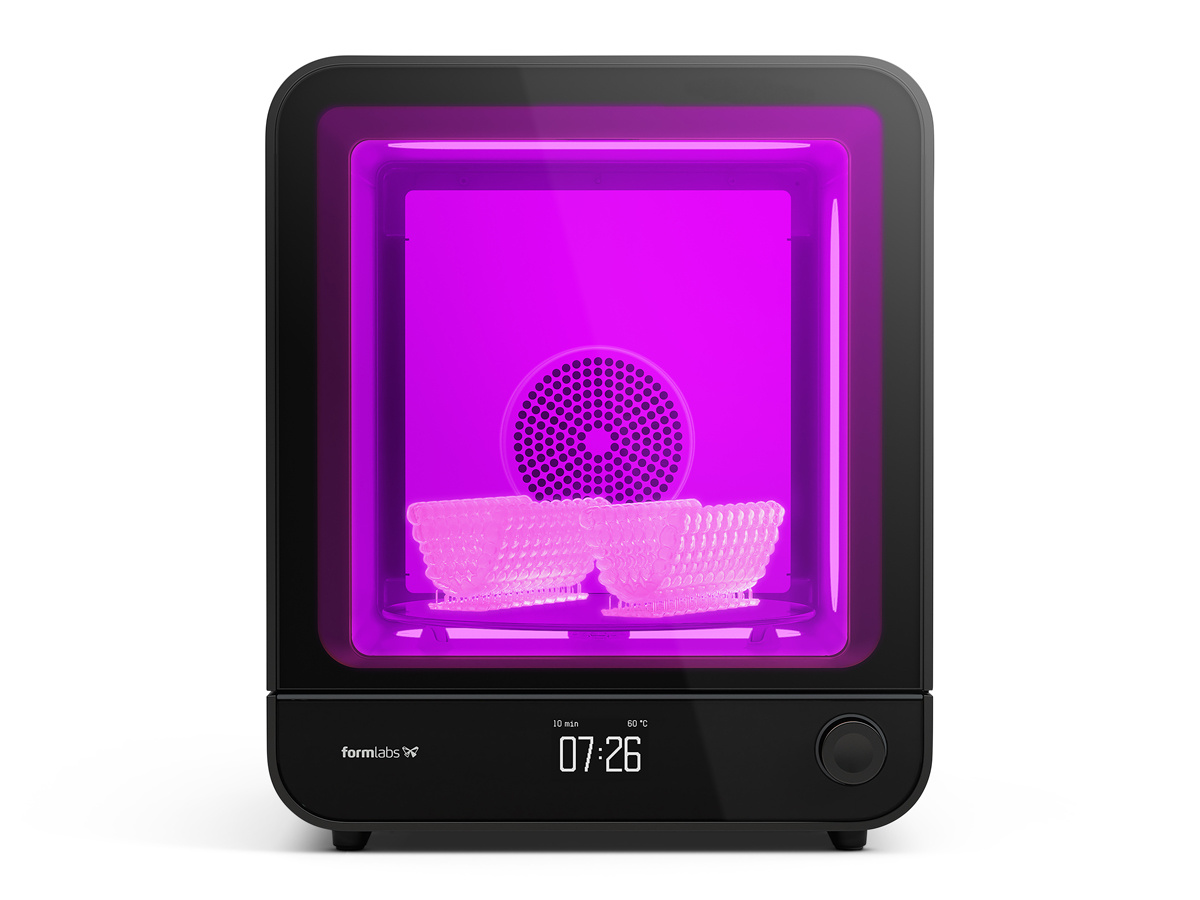

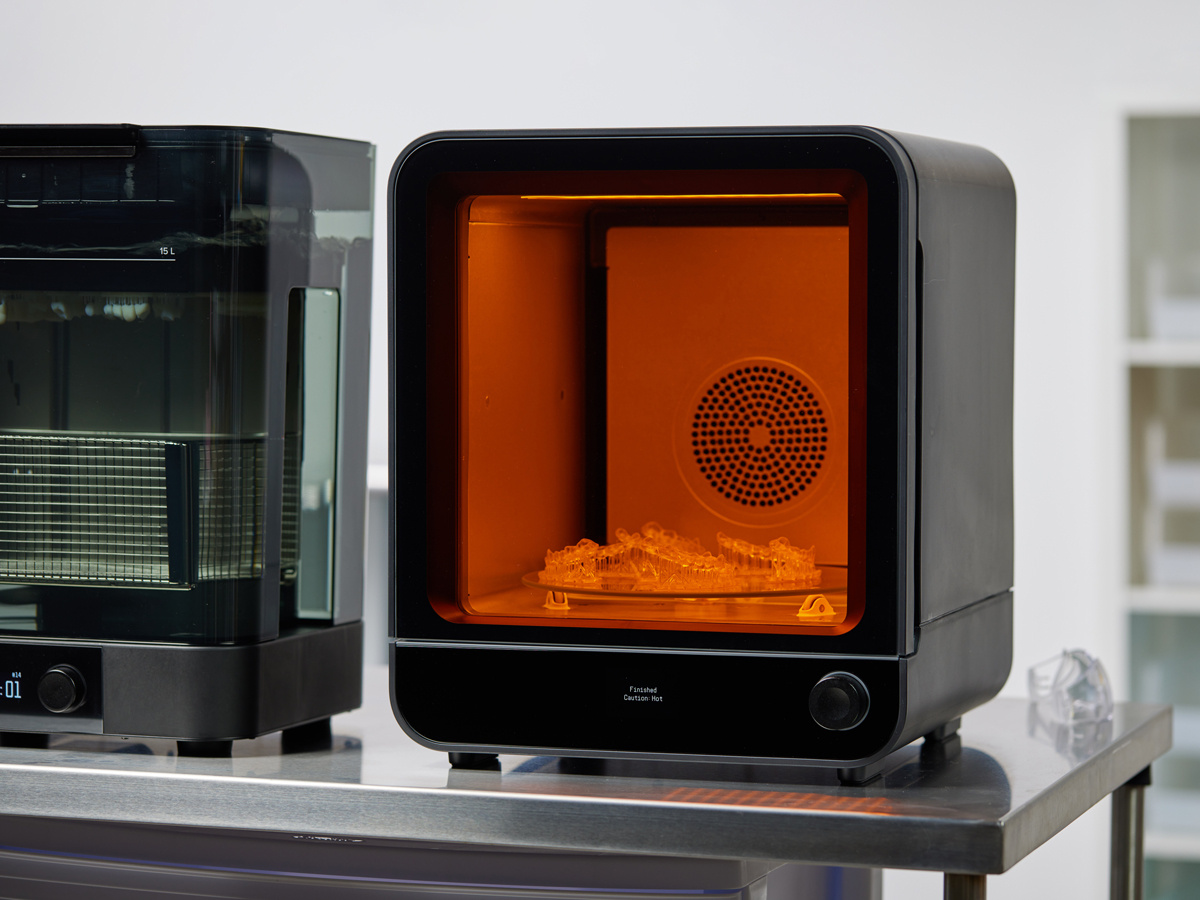

Form Cure (2nd Generation) precisely combines heat and 405 nm light to deliver tough, strong prints with unprecedented speed and consistency. Now you can post-cure Form 4/B prints in as little as 60 seconds, with 4x more UV power, 5x faster heat-up times, and a 1.3x larger chamber. To begin curing, just select a validated preset for Formlabs 45+ materials. Advanced users can customize time and temperature to fit their specific needs.Post-curing completes the chemical reaction started during printing, enhancing final part strength, toughness, heat resistance, and creep resistance while creating a harder, less tacky surface.
For biocompatible materials, post-curing is necessary to achieve the safety standards determined by regulatory agencies.
Cure Most Parts in 60 Seconds
Rapid UV curing and instant heat up for consistent, validated results and effortless post-curing of large Form 4 prints.
Blazing Fast Curing, Nearly Instant Heat Up Time
Post-cure general purpose resins in just 60 seconds or cure engineering resins in less than 15 minutes with just 60 seconds required to heat to 60 °C (230 V version).
Consistent, Validated Results
48 LED array and convective heating system ensure uniform UV and heat exposure, delivering 14.5 mW/cm² irradiance and a maximum temperature of 100 °C.
Post-Cure Large Form 4 Prints
Designed to fit any part on the Form 4, enabling curing of parts up to 200 x 125 x 245 mm on a 235 mm turntable.
Easier than Ever

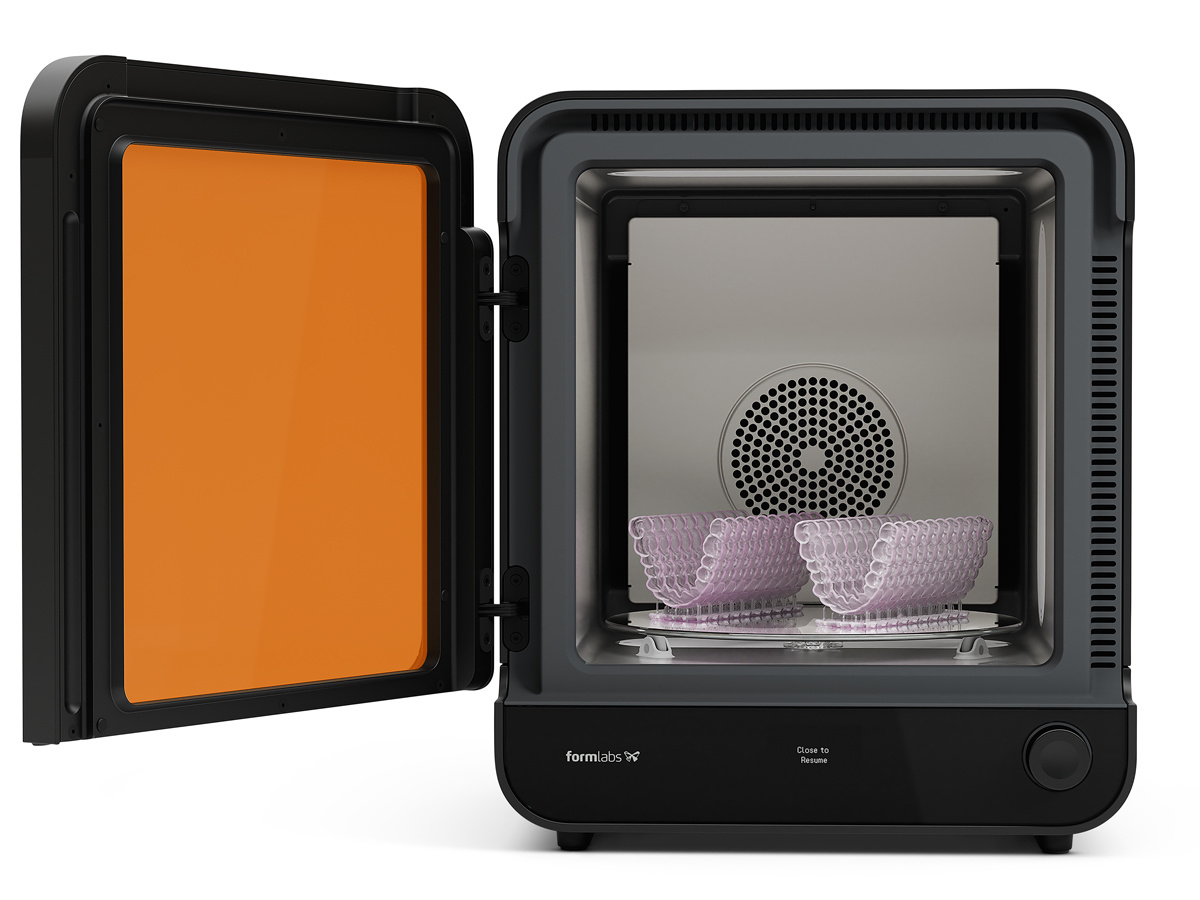

Sleek new design with pre-programmed cure cycles, an easily cleaned glass turntable, and side-hinged door to allow easy access within a compact footprint.
Printer compatibility
Form 4, Form 4B, Form 4L, Form 4BL, Form 3, Form 3L, Form 3B, Form 3BL, Form 2
Technical information
Dimensions: 33.7 × 40.4 × 37.2 cm/13.3 × 14.0 × 15.9 inWeight: 12.1 kg/26.7 lb
Turntable Diameter : 23.5 cm/9.25 in
Maximum Part Height : 24.5 cm/ 9.64
Maximum Cure Chamber : 100 °C/212 °F
Light Source : 48 multi-directional LEDs
LED Power: 150 W
LED Radiant: 50 W
LED Wavelength: 405 nm
Power Requirements: Input (NA) 100 - 120 V VAC, 50-60 Hz, 15 A; Input (EU) 220 - 240 V VAC, 50-60 Hz, 8 A
Artikelmerkmale
Manufacturer
Formlabs
Product type
Postprocessing
