Product description

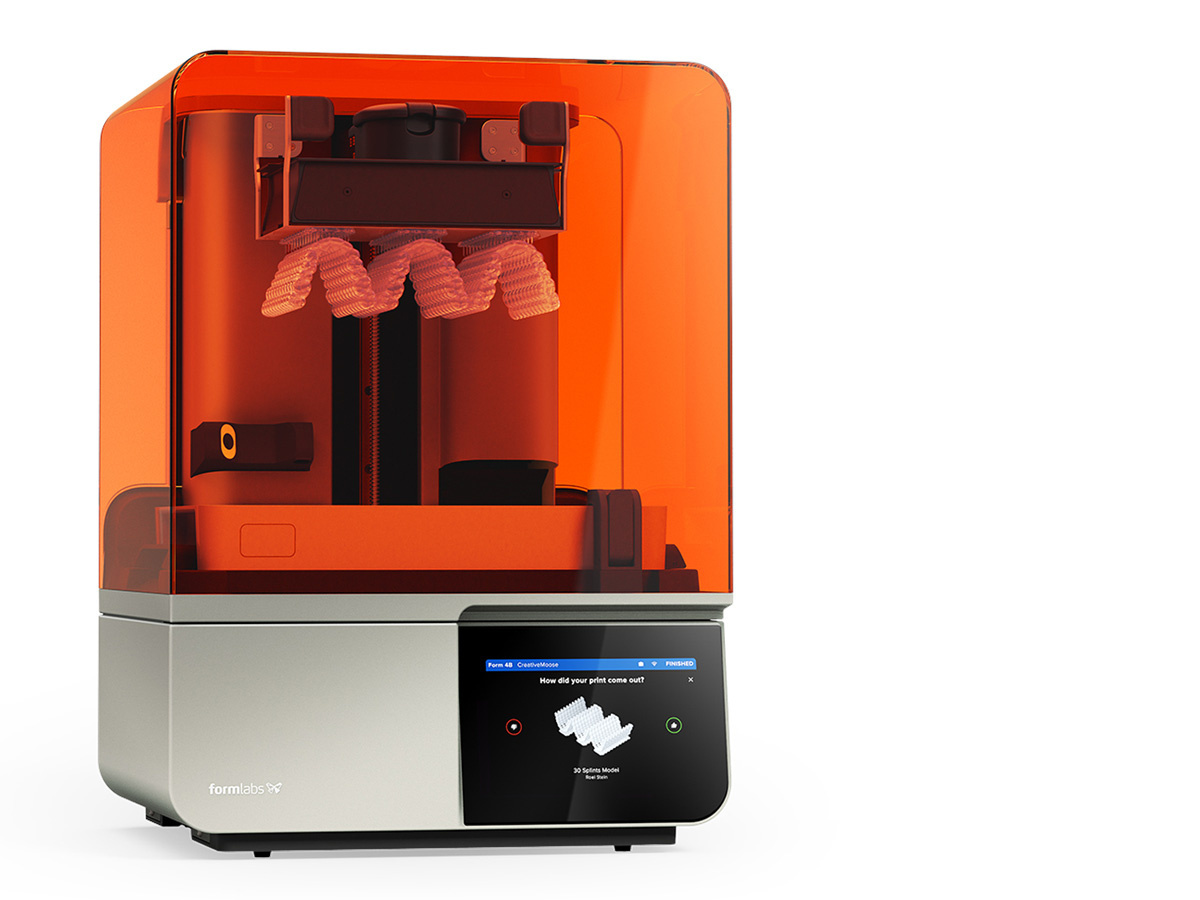

Dental 3D printing – rapid speed and extreme precisionThe Form 4 is an extremely fast MSLA 3D printer that combines an industry-leading material library with a reliable and precise printing system. Bring your ideas to life faster than ever before with a simple workflow, unmatched reliability and superior print quality on the Form 4 ecosystem.
The speed of the Form 4 is based on Formlabs' new Low Force Display™ technology, a powerful printing system consisting of high-performance LEDs, collimator lenses, optical filters and a robust liquid crystal display. Together, these components ensure lightning-fast curing of individual resin layers – regardless of the size and number of parts. By adhering to tight tolerances, the Form 4 consistently delivers parts that meet your design parameters, regardless of the resin used and with every print.
Applications
- Orthodontic or aligner models
- Crown and bridge models
- Models for casting and pressing
- Models for oral, maxillofacial and facial surgery or diagnostic models
NOTE: The Form 4B can be used for printing biocompatible materials.
Technical information
- Technology: Low Force Display (LFD)
- Build volume: 20.0 × 12.5 × 21.0 cm
- XY resolution¹: 50 µm
- Layer thickness²: 25–300 µm
- Average print speed (100 µm layer height): 40 mm/h
- Maximum print speed: 100 mm/h
- Dimensions: (W/D/H): 39.8 × 36.7 × 55.4 cm
- Weight: 18.3 kg
¹ XY resolution describes how accurately the printer can print in the XY plane (horizontal).
² The available layer thickness varies depending on the material.
Scope of delivery
- 1× Form 4 3D printer

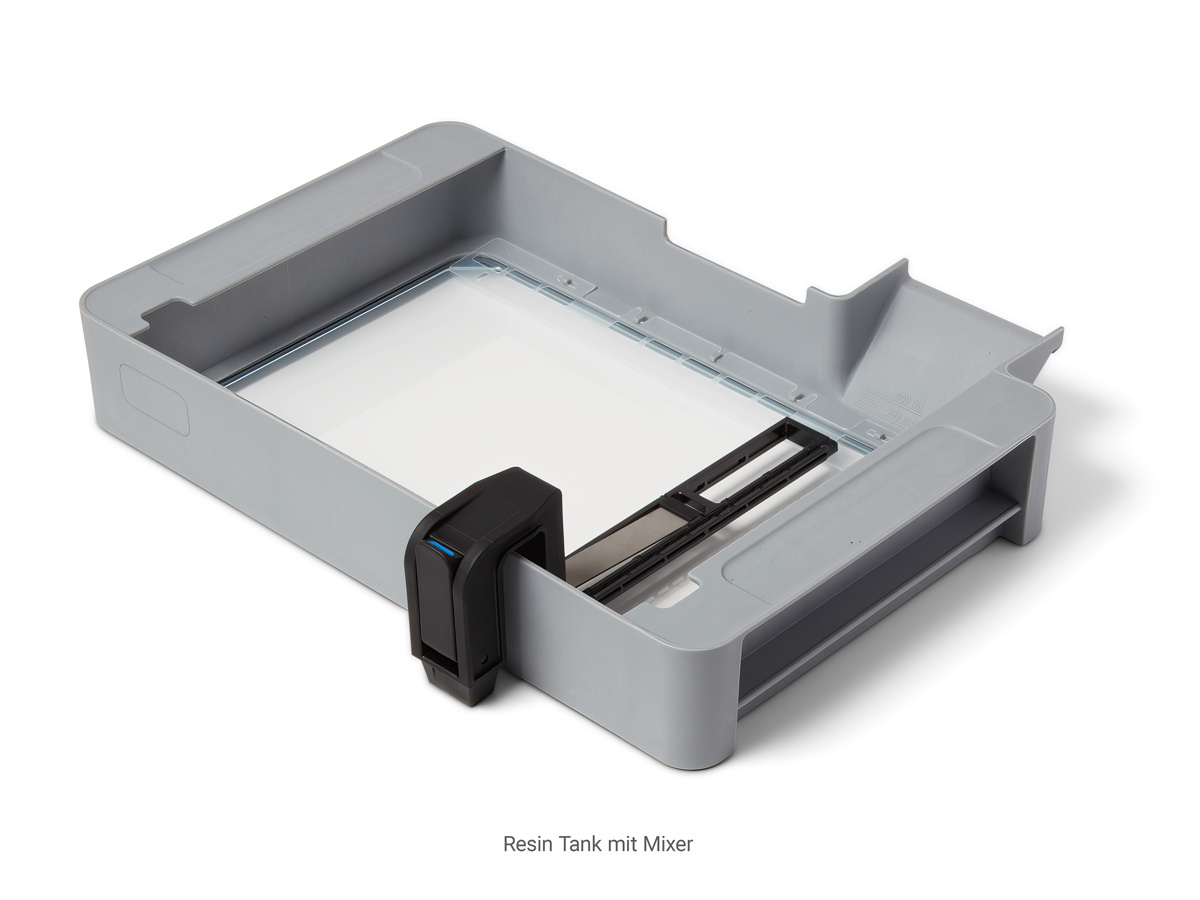

- 1× Form 4 resin tank
- 1× Form 4 mixer

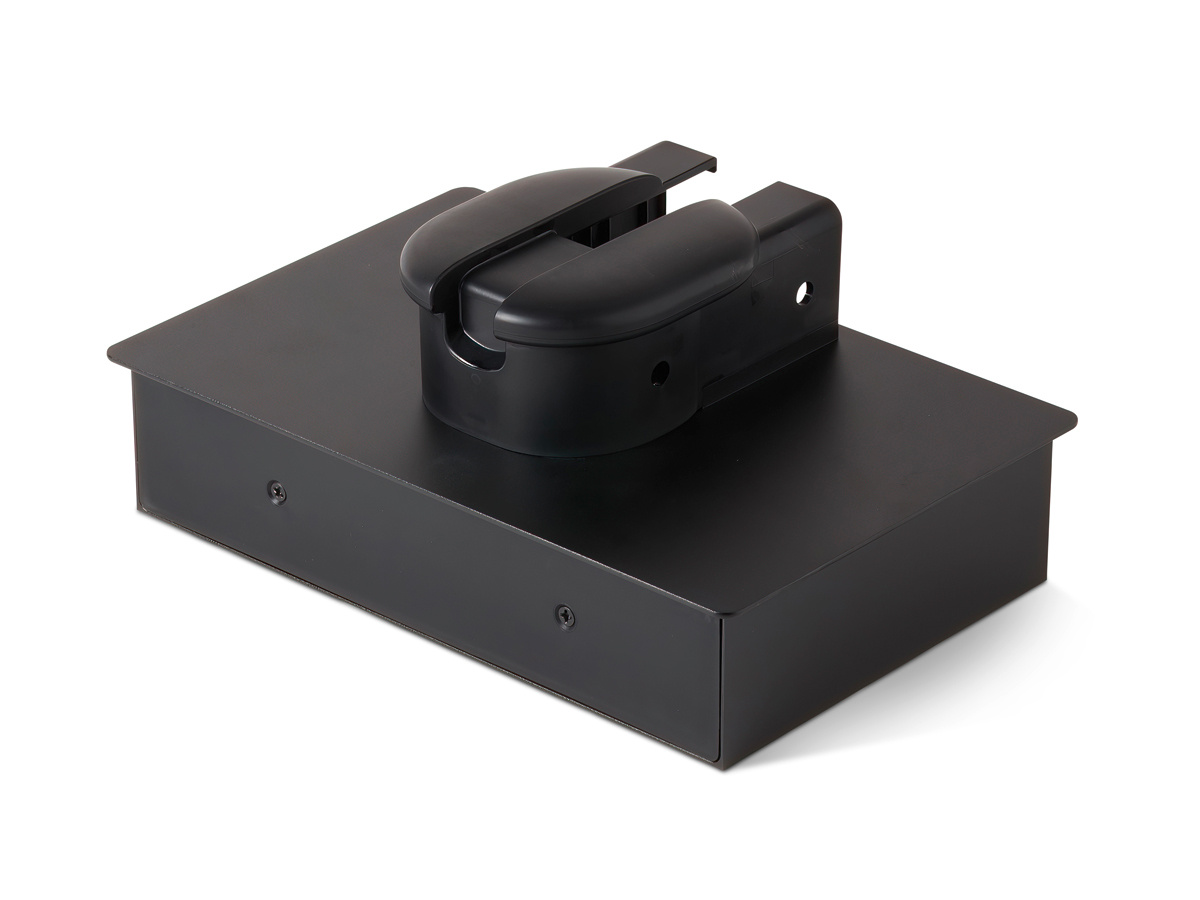

- 1× Form 4 build platform

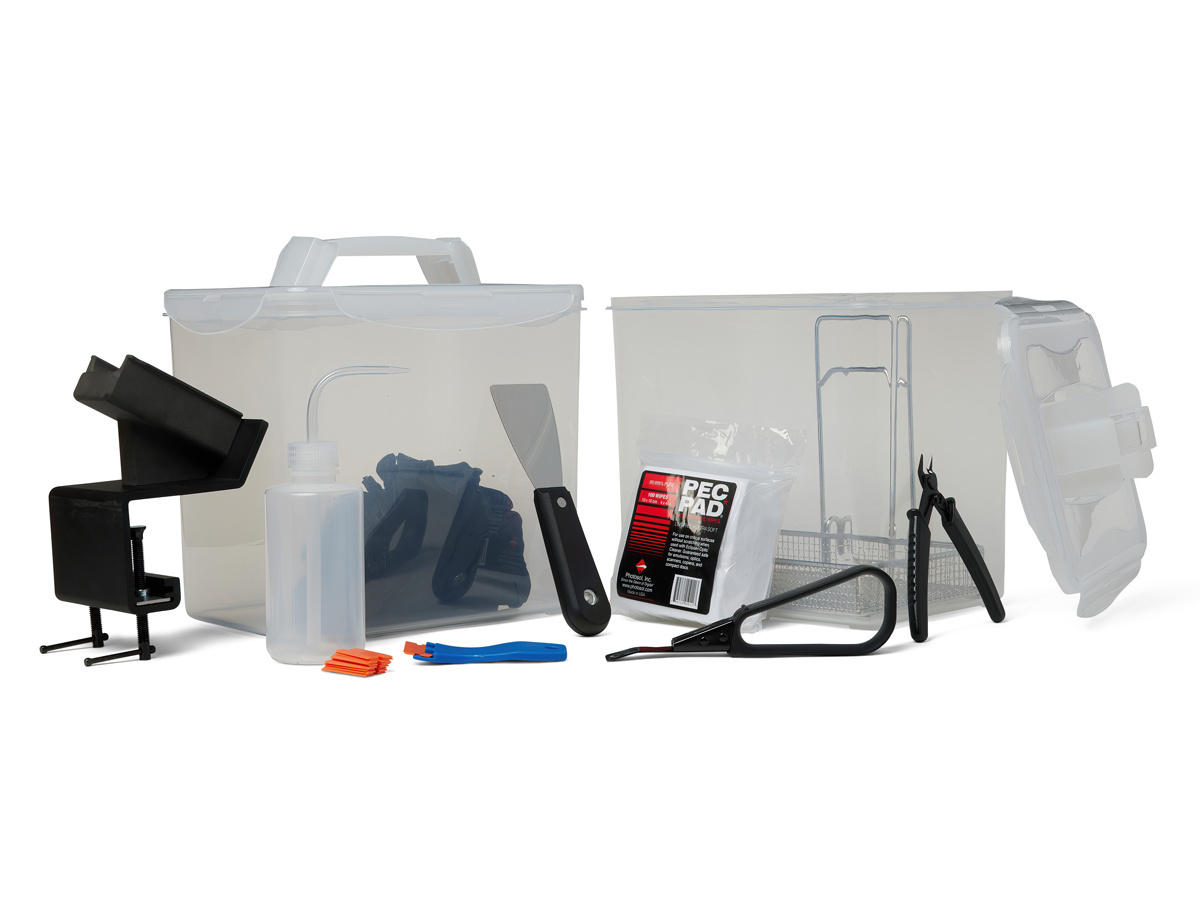

- 1× Form 4 finish kit
- 2 rinsing containers
- Rinsing basket
- Release tool
- Plastic tank scraper
- Platform holder
- Side cutters
- Pressure bottle
- Disposable nitrile gloves
Artikelmerkmale
Manufacturer
Formlabs
Modell
Form 4
Product type
Printer
